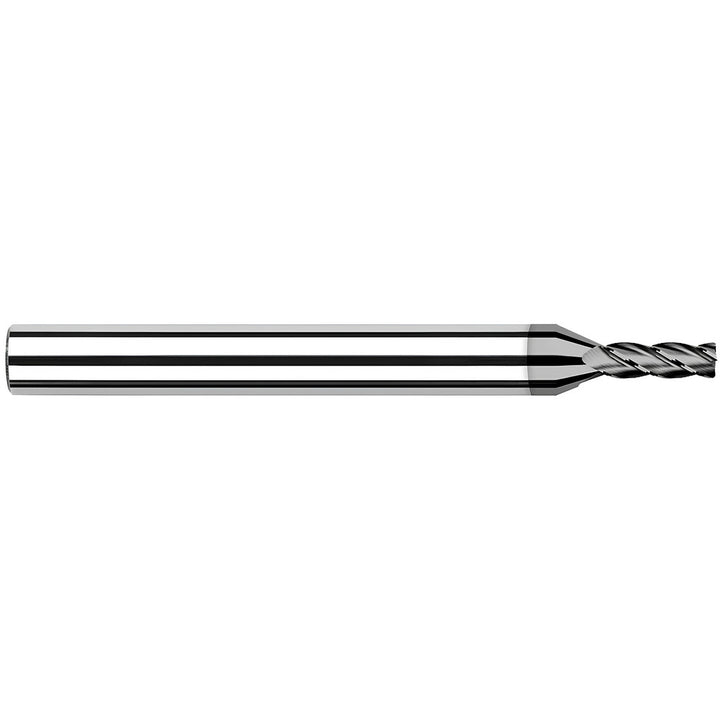

0.0620" 4-Flute Solid Carbide Corner Radius End Mill, Diamond - Harvey Tool 955462

MFR# 955462Series Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius; Material Specific End Mills

$136.62List $159.50 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingDiamond

Description

The Harvey Tool 955462 is a 0.0620 4-flute Solid Carbide corner radius end mill with a Diamond finish for longer tool life. Suited for non-iso, graphite. 1-1/2 overall length. Series Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDiamond

Coolant throughNo

Corner radius0.0050

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Length of cut1.1250

Length typeRegular

Material applicationComposite; Graphite

Material removal typeRoughing & Finishing

Mill diameter0.0620

Mill diameter tolerance0.0000 to -0.0010 in

Number of flutes4

Overall length in1-1/2

Overall length tolerance0.0100 to -0.0000 in

PitchNormal

Primary workpiece materialNon-ISO; Graphite

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
