Harvey Tool

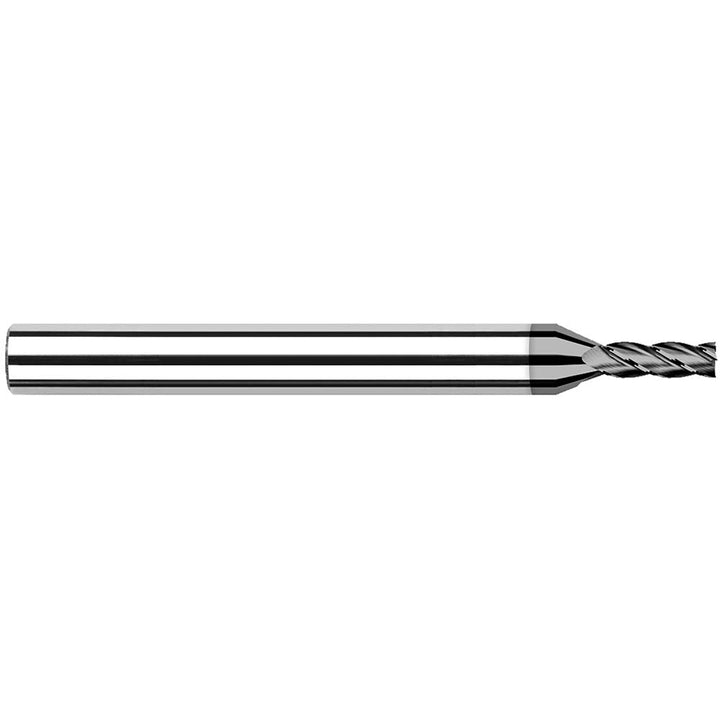

1/16" 4-Flute Solid Carbide Square End Mill, CVD Diamond - Harvey Tool 962762
MFR# 962762
$128.32List $149.82
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingCVD Diamond
Description
The Harvey Tool 962762 is a 1/16 4-flute Solid Carbide square end mill with a CVD Diamond finish for longer tool life. 3/32 length of cut, 1-1/2 overall length.
Specifications
CentercuttingYes
Coating finishCVD Diamond
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in3/32
Length of cut range0.0000 - 0.1000
Mill diameter in1/16
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
