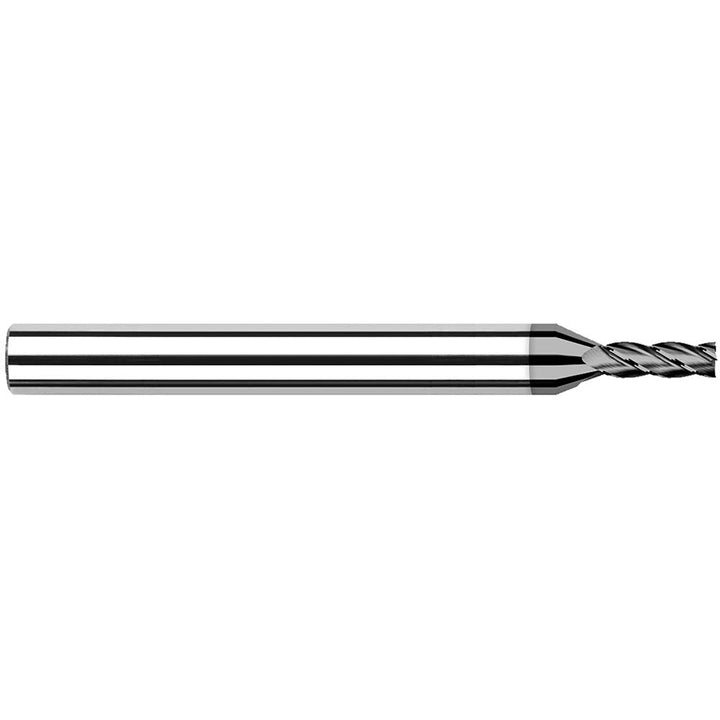

1/2" 4-Flute Solid Carbide Square End Mill, CVD Diamond - Harvey Tool 962832

Harvey Tool

1/2" 4-Flute Solid Carbide Square End Mill, CVD Diamond - Harvey Tool 962832

MFR# 962832

$424.08List $495.11 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingCVD Diamond

Description

The Harvey Tool 962832 is a 1/2 4-flute Solid Carbide square end mill with a CVD Diamond finish for longer tool life. 3/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishCVD Diamond
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Mill diameter in1/2
Number of flutes4
Overall length in3
Shank diameter in1/2
Variable helixNo
