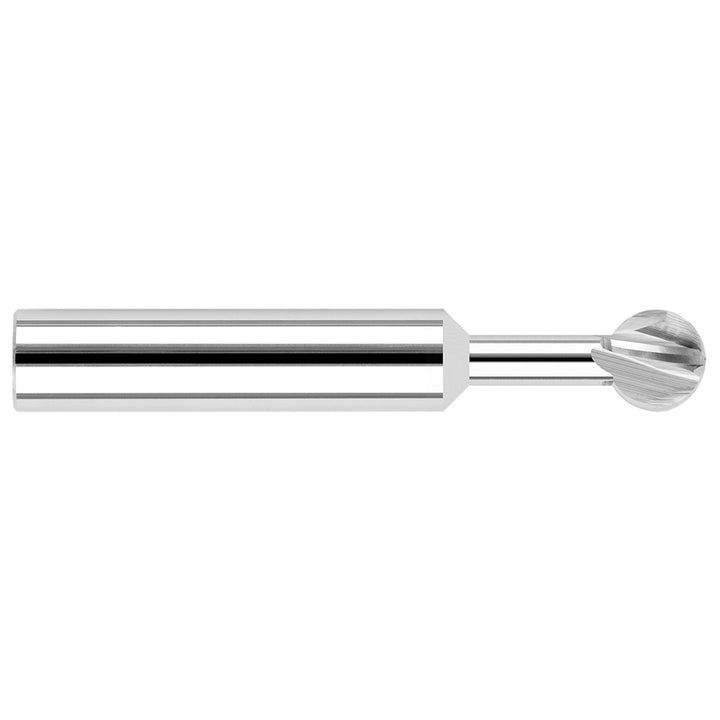

3/16" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 984012

Harvey Tool

3/16" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 984012

MFR# 984012

$65.82List $71.30 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 984012 is a 3/16 4-flute Solid Carbide undercutting end mill. 2 overall length.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.1740
Mill diameter in3/16
Neck diameter0.0820
Neck length0.2500
Number of flutes4
Overall length in2
Shank diameter in3/16
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees300
