Harvey Tool

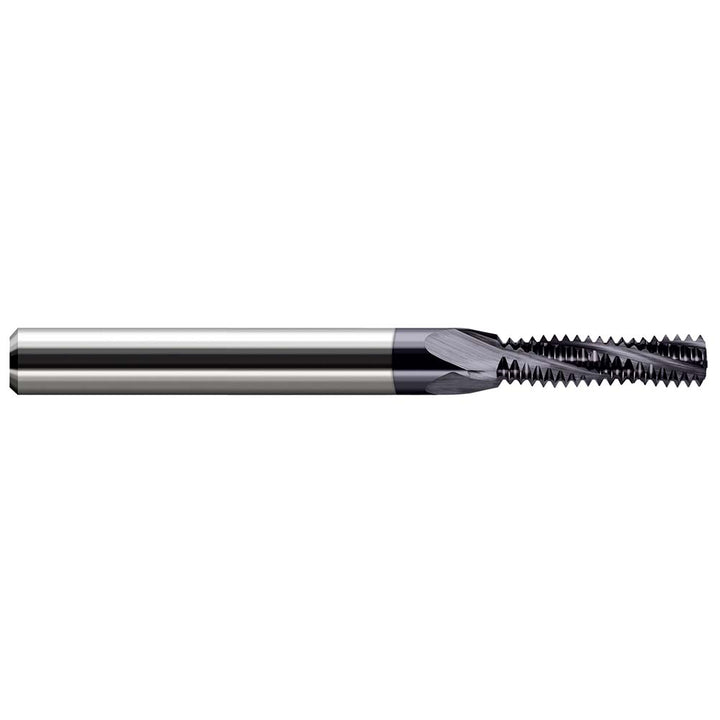

Helical Flute Thread Mills - Harvey Tool 987103-C3
MFR# 987103-C3Series Thread Milling Cutters - Multi-Form - Long Flute - UN Threads
$575.78List $672.21
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingAlTiN
Description
The Harvey Tool 987103-C3 helical flute thread mills. Series Thread Milling Cutters - Multi-Form - Long Flute - UN Threads.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting diameter0.5800
Length of cut1.8750
MaterialSolid Carbide
Number of flutes4
Overall length4.0000
Shank diameter0.6250
Teeth per inch16
Thread length1.8750
Thread mill typeLong Reach
Thread size in3/4-16
Thread typeInternal
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
