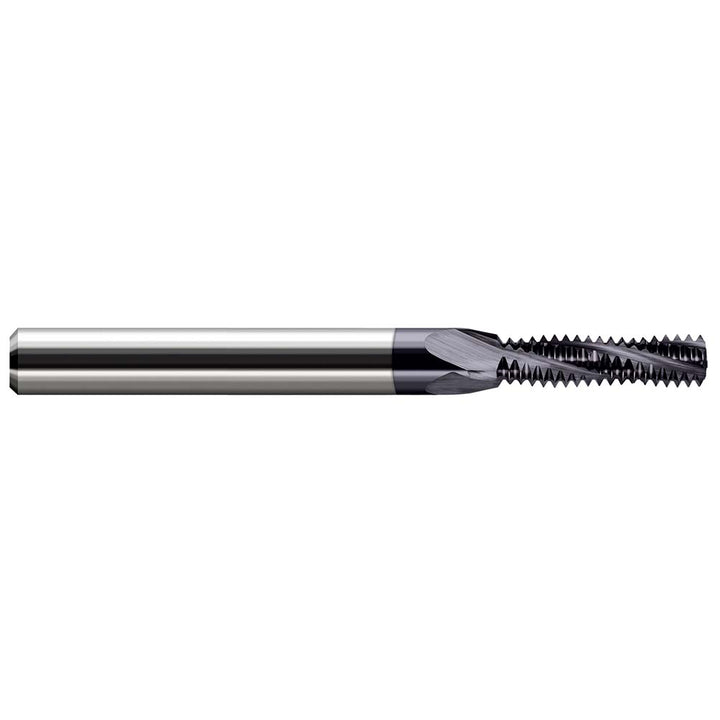

Helical Flute Thread Mills - Harvey Tool 987194-C3
MFR# 987194-C3Series Thread Milling Cutters - Multi-Form - Long Flute - UN Threads
$409.39List $477.95
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-18
CoatingAlTiN
Description
The Harvey Tool 987194-C3 helical flute thread mills. Series Thread Milling Cutters - Multi-Form - Long Flute - UN Threads.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting diameter0.4500
Length of cut1.5000
MaterialSolid Carbide
Number of flutes4
Overall length3.5000
Shank diameter0.5000
Teeth per inch18
Thread length1.5000
Thread mill typeLong Reach
Thread size in9/16-18
Thread typeInternal
