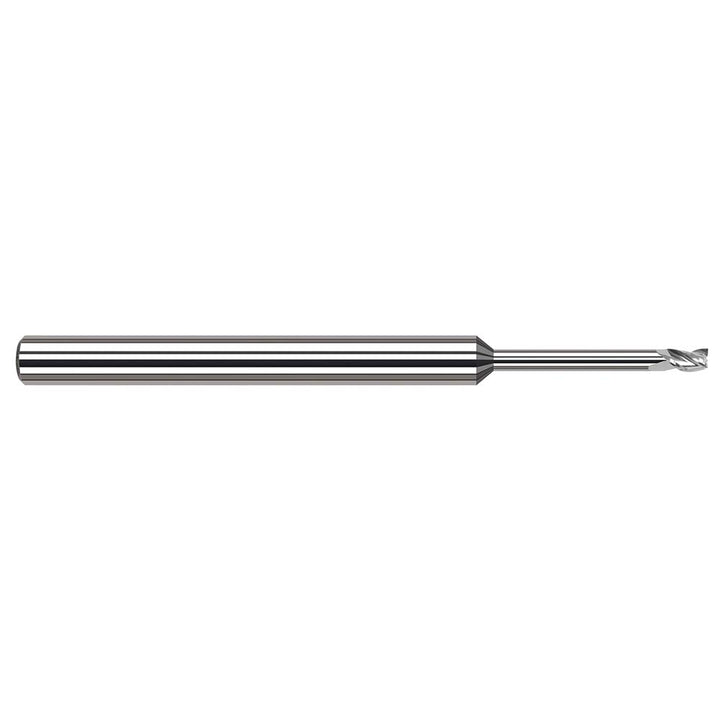

5/8" 4-Flute Solid Carbide Square End Mill - Harvey Tool 991940

Harvey Tool

5/8" 4-Flute Solid Carbide Square End Mill - Harvey Tool 991940

MFR# 991940

$528.53List $606.32 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 991940 is a 5/8 4-flute Solid Carbide square end mill. 15/16 length of cut, 8 overall length.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Helix angle30
Length of cut in15/16
Length of cut range0.8000 - 1.0000
Mill diameter in5/8
Number of flutes4
Overall length in8
Reach length5.687
Shank diameter in5/8
Variable helixNo
