Harvey Tool

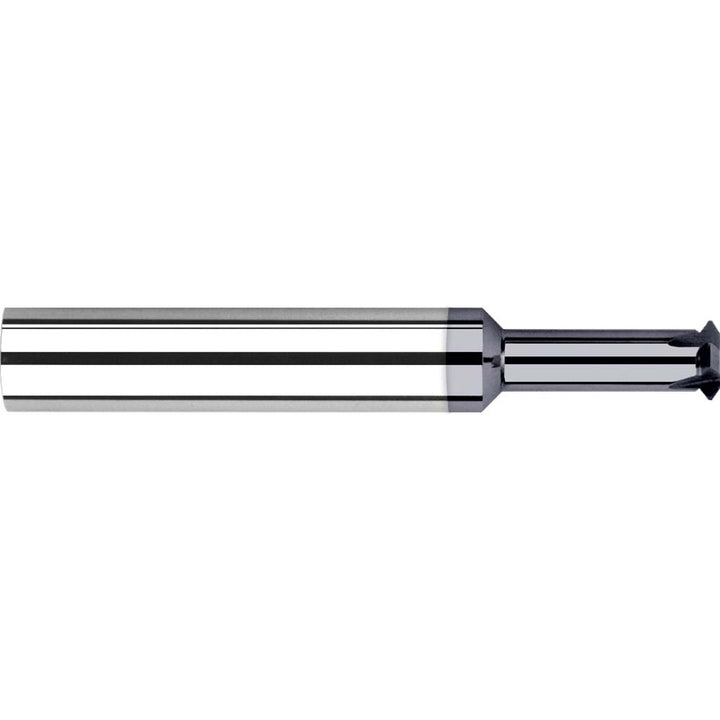

4-40 to 4-48" Single Profile Thread Mills - Harvey Tool 993110-C6
MFR# 993110-C6
$141.61List $165.33
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingAlTiN Nano
Description
The Harvey Tool 993110-C6 single profile thread mills.
Specifications
Coating finishAlTiN Nano
Cutting diameter0.0800
MaterialSolid Carbide
Maximum threads per inch48
Minimum threads per inch40
Neck diameter0.0500
Neck length0.2500
Number of flutes3
Overall length in2
Shank diameter in3/16
Thread size4-40 to 4-48
Thread typeInternal & External
