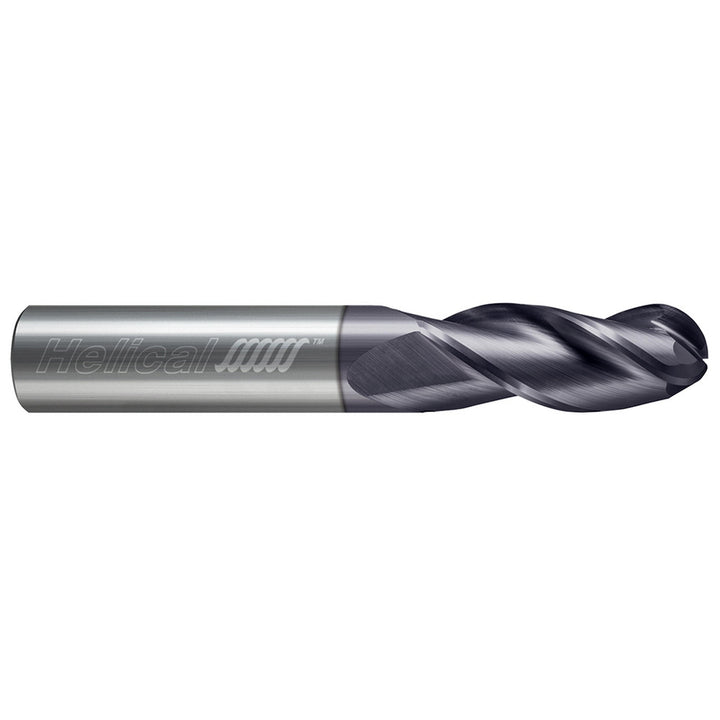

1/8in" 3-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 12032

Helical Solutions

1/8in" 3-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 12032

MFR# 12032Series 3 Flute, Ball (Aplus), End Mills for Steels, Tool Steels, & Cast Iron

$34.49List $40.26 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes3
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 12032 is a 1/8in 3-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 1/2in length of cut, 2-1/2in overall length. Series 3 Flute, Ball (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.

Specifications

ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in1/2in
Length typeStandard
Manufacturers catalog number12032
Material gradeCarbide
Material removal typeRoughing
Mill diameter in1/8in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0625
Number of flutes3
Overall length in2-1/2in
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in1/2
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
