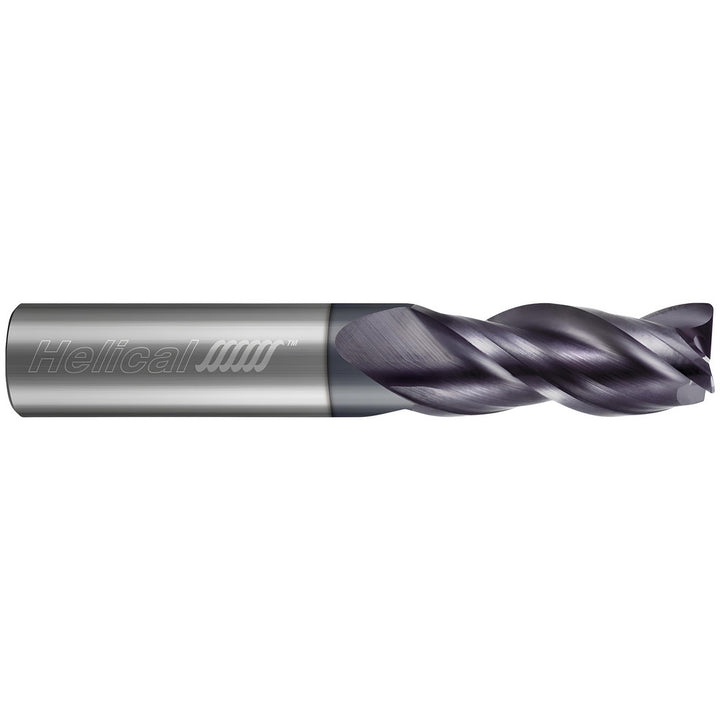

3/8" 3-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 23152

Helical Solutions

3/8" 3-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 23152

MFR# 23152Series HSV-3

$46.70List $50.59 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 23152 is a 3/8 3-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 1/2 length of cut, 2 overall length. Series HSV-3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in1/2
Length typeStub
Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron; Titanium
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in2
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
