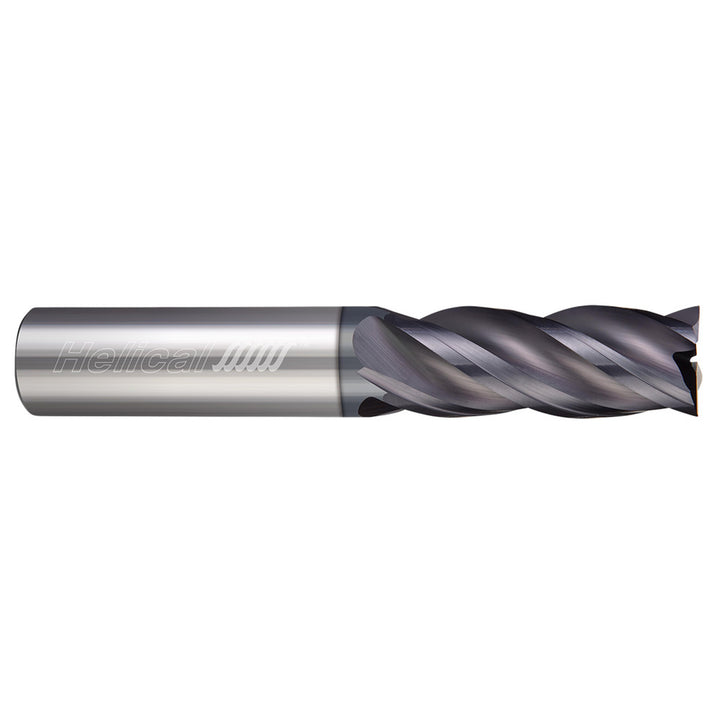

3/16" 4-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 30077

Helical Solutions

3/16" 4-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 30077

MFR# 30077

$29.02List $33.88 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 30077 is a 3/16 4-flute Solid Carbide square end mill with a APLUS finish for longer tool life. 5/16 length of cut, 2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in5/16
Material gradeSolid Carbide
Mill diameter in3/16
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
