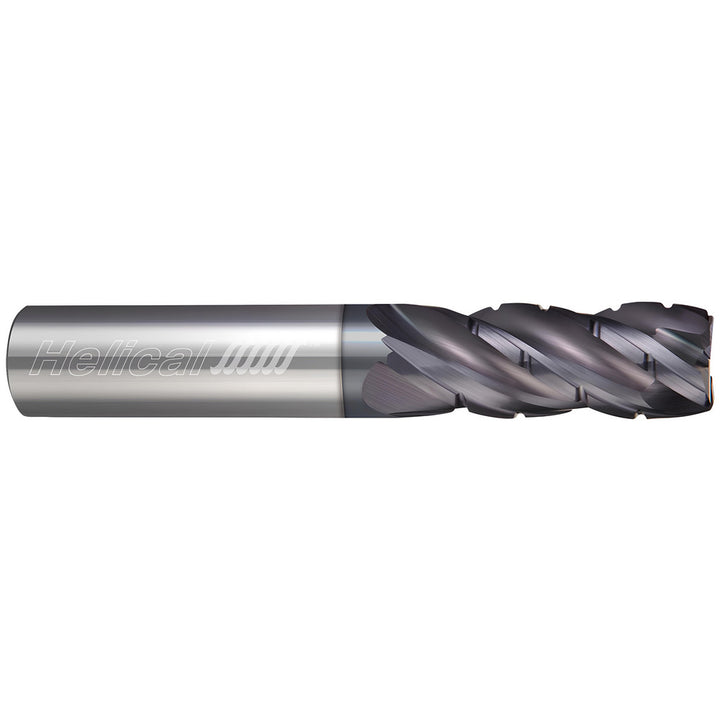

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 31677

Helical Solutions

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 31677

MFR# 31677Series HSV-4

$345.41List $403.26 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 31677 is a 3/4in 4-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 2-1/4in length of cut, 5 overall length. Series HSV-4.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in2-1/4in
Length typeStandard
Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in5
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
