Helical Solutions

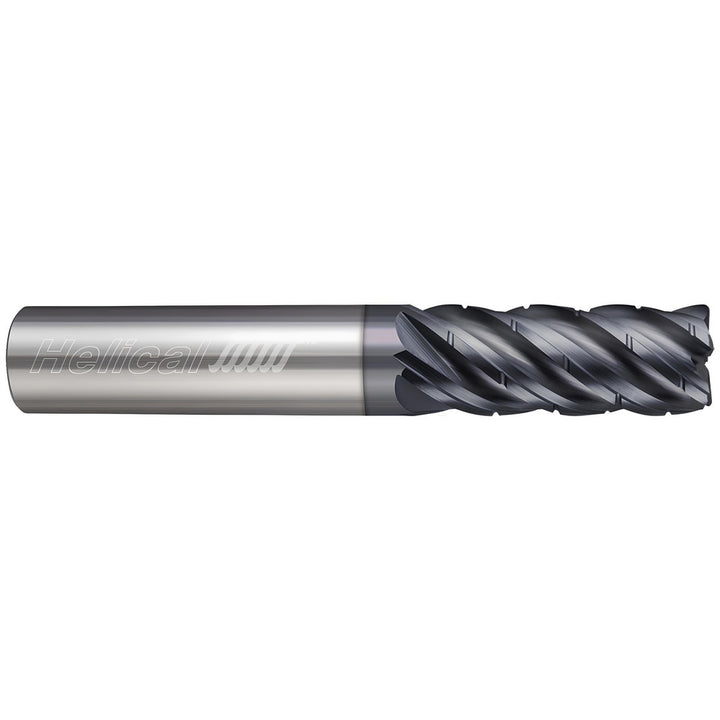

1/2" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 33527

MFR# 33527Series HSVR-C-4

$136.71List $159.61 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 33527 is a 1/2 4-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 1-1/4 length of cut, 3 overall length. Series HSVR-C-4.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAPLUS

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in1-1/4

Length typeRegular

Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in3

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Cast Iron

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
