Helical Solutions

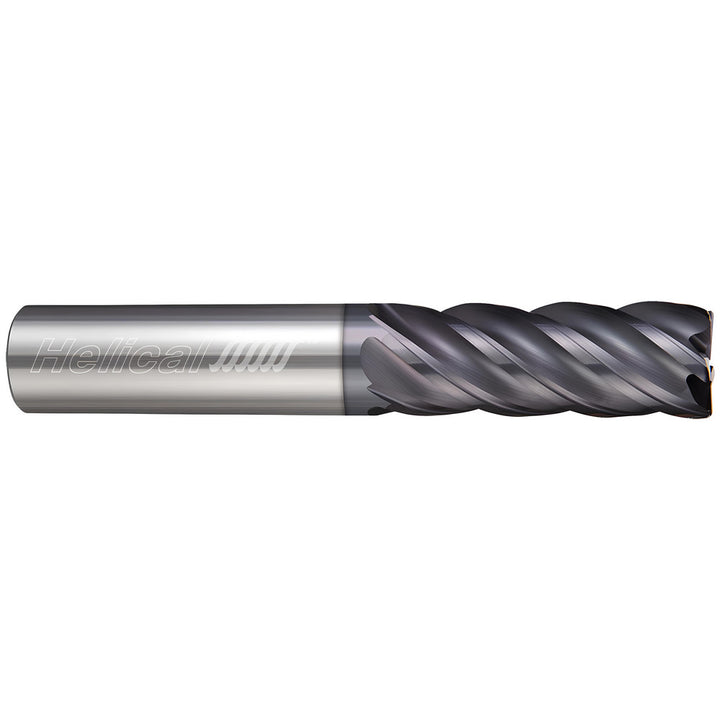

3/8" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 34227
MFR# 34227Series HEV-5
$76.42List $87.67
Save 12%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 34227 is a 3/8 5-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 1 length of cut, 3 overall length. Series HEV-5.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Length of cut in1
Length typeRegular
Material applicationSteel; Cast Iron
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes5
Overall length in3
Overall length tolerance-0.0620 to 0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
