Helical Solutions

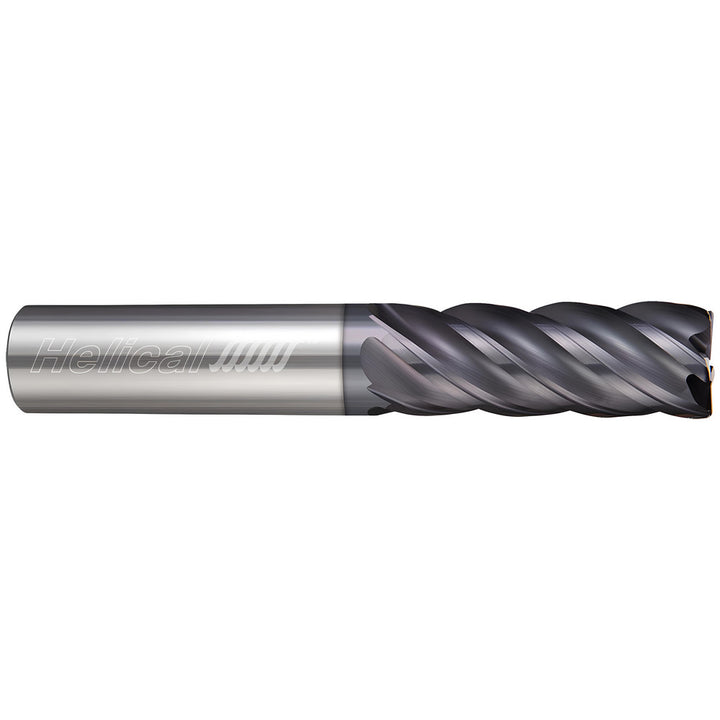

5/8" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 34347

MFR# 34347Series HEV-5

$275.03List $321.09 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 34347 is a 5/8 5-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 2-1/8 length of cut, 4 overall length. Series HEV-5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in2-1/8

Length typeStandard

Material applicationSteel; Cast Iron

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in4

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Cast Iron

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
