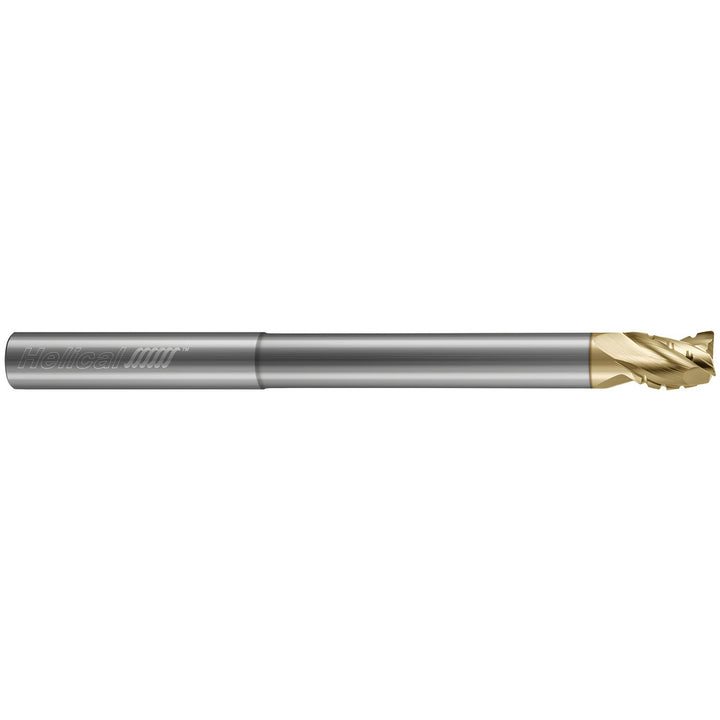

3/8" 3-Flute Solid Carbide Corner Radius End Mill, Zplus - Helical Solutions 46266

MFR# 46266Series H40ALV-RN-3

$96.67List $112.86 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingZplus

Description

The Helical Solutions 46266 is a 3/8 3-flute Solid Carbide corner radius end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 1/2 length of cut, 4 overall length. Series H40ALV-RN-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZplus

Coolant throughNo

Corner radius0.0900

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Helix styleHigh

Length of cut in1/2

Length typeMedium

Material applicationAluminum; Non-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh6

Neck diameter0.3560

Number of flutes3

Overall length in4

Overall length tolerance-0.0620 to 0.0620 in

PitchVariable

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; High Temperature Alloy; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0003

Variable helixNo

Variable indexYes
