Helical Solutions

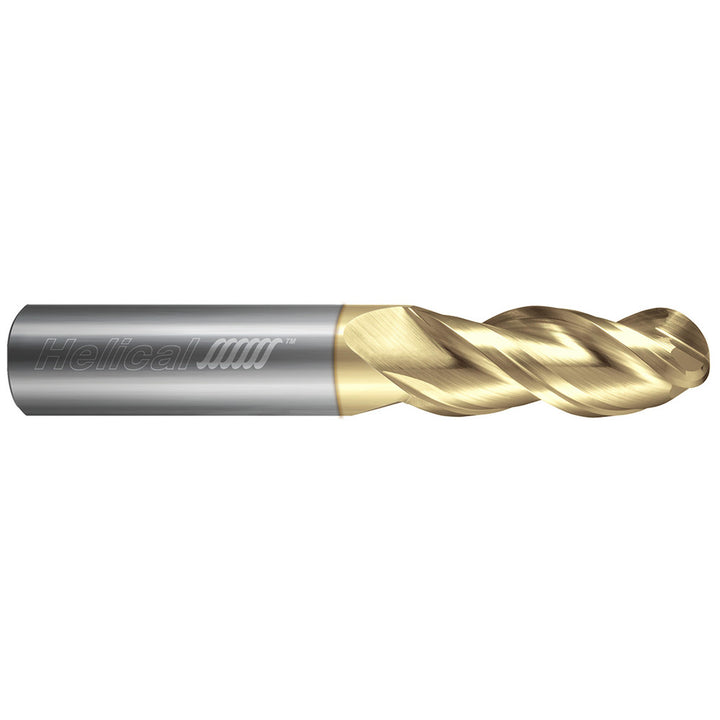

3/16in" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49051
MFR# 49051Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials
$50.50List $58.96
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingZplus
Description
The Helical Solutions 49051 is a 3/16in 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 3/8in length of cut, 2in overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.
Specifications
ChipbreakerNo
Coating finishZplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in3/8in
Length typeStandard
Manufacturers catalog number49051
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter toleranceh6
Nose radius0.0938
Number of flutes3
Overall length in2in
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialNon-Ferrous Metal
Reach length in3/8
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexNo
