1/4in" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49106

Helical Solutions

1/4in" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49106

MFR# 49106Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials

$61.14List $71.39 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingZplus

Description

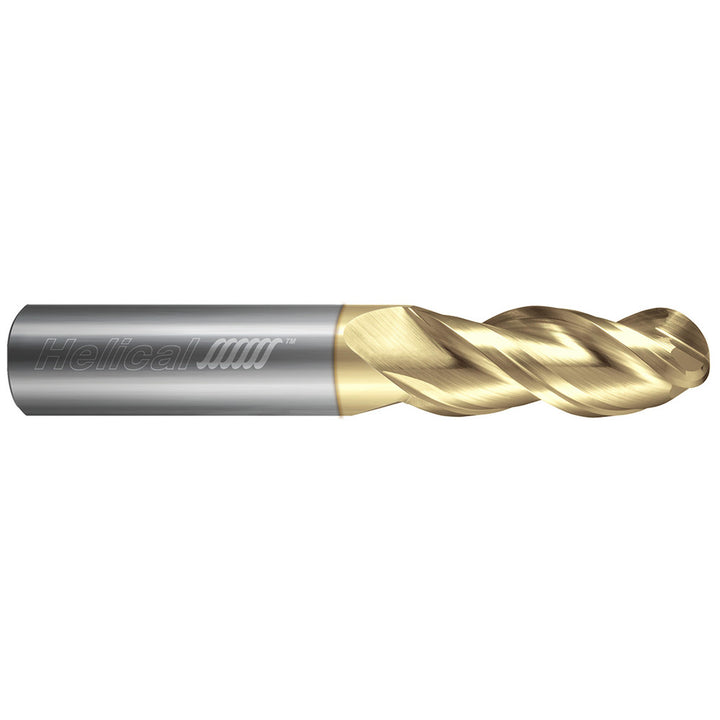

The Helical Solutions 49106 is a 1/4in 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 3/4in length of cut, 2-1/2in overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo
Coating finishZplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number49106
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter toleranceh6
Nose radius0.1250
Number of flutes3
Overall length in2-1/2in
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialNon-Ferrous Metal
Reach length in3/4
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexNo
