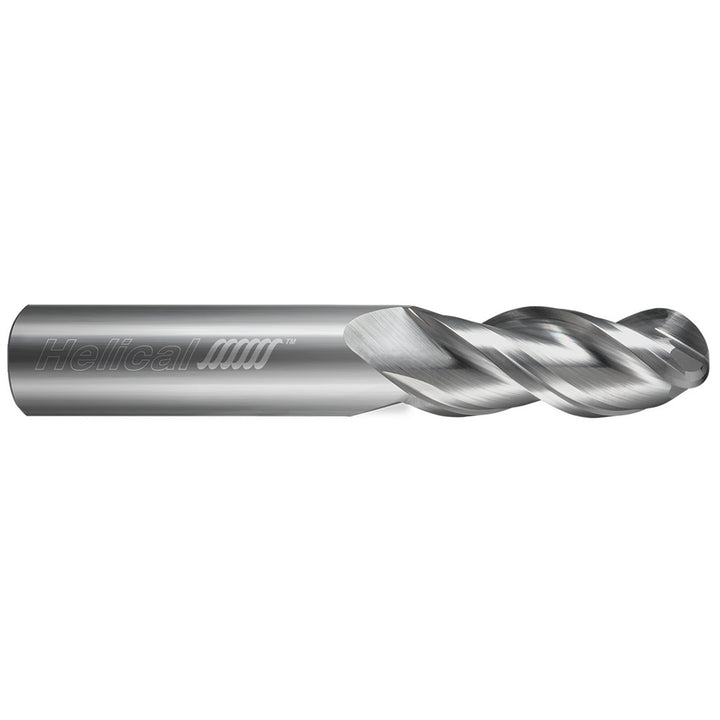

1/2" 3-Flute Solid Carbide Ball End Mill - Helical Solutions 49285
MFR# 49285Series H40ALV-3
$113.92List $130.68
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Helical Solutions 49285 is a 1/2 3-flute Solid Carbide (Carbide) ball end mill. Suited for aluminum & non-ferrous. 1-1/4 length of cut, 3 overall length. Series H40ALV-3.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Helix styleHigh
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog number49285
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter toleranceh6
Nose radius0.2500
Number of flutes3
Overall length in3
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialAluminum & Non-Ferrous
Reach length in1-1/4
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexNo
