ProMax

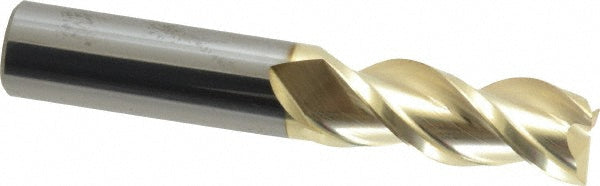

1/2" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-03216
MFR# 109-03216Series 109
$68.65List $88.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 109-03216 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3 overall length. Series 109.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in3
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
