5/8" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49346

MFR# 49346Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials

$221.51List $258.61 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingZplus

Description

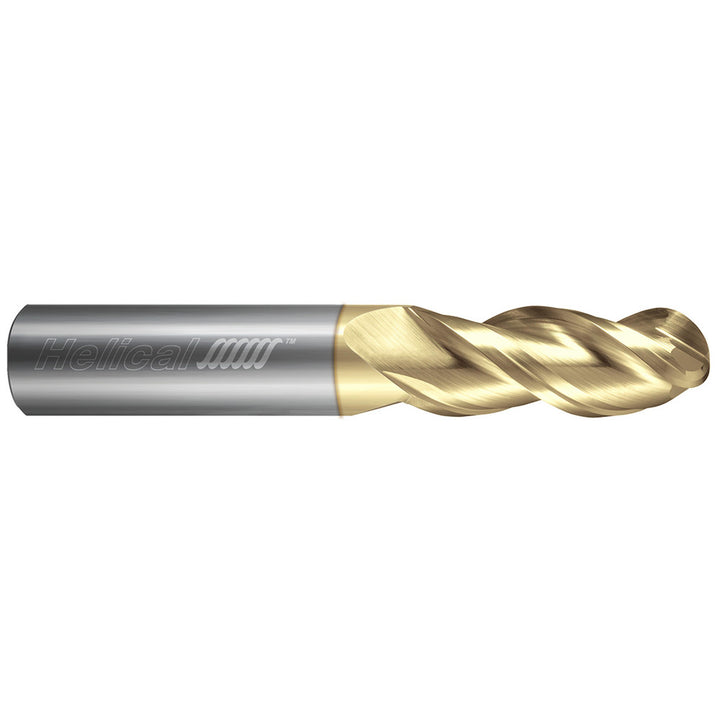

The Helical Solutions 49346 is a 5/8 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo
Coating finishZplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Helix styleHigh
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog number49346
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter toleranceh6
Nose radius0.3125
Number of flutes3
Overall length in3-1/2
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/4
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexNo
