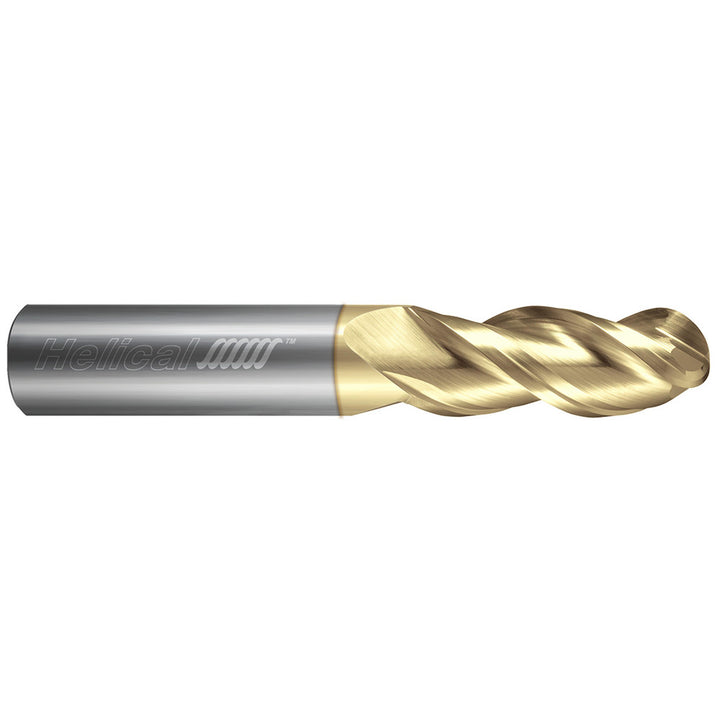

3/4" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49406

Helical Solutions

3/4" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49406

MFR# 49406Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials

$359.00List $411.84 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide
CoatingZplus

Description

The Helical Solutions 49406 is a 3/4 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo
Coating finishZplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Helix styleHigh
Length of cut in1-5/8
Length typeStandard
Manufacturers catalog number49406
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter toleranceh6
Nose radius0.3750
Number of flutes3
Overall length in4
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialNon-Ferrous Metal
Reach length in1-5/8
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexNo
