1/2" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 56527

Helical Solutions

1/2" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 56527

MFR# 56527Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron

$130.97List $152.90 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAPLUS

Description

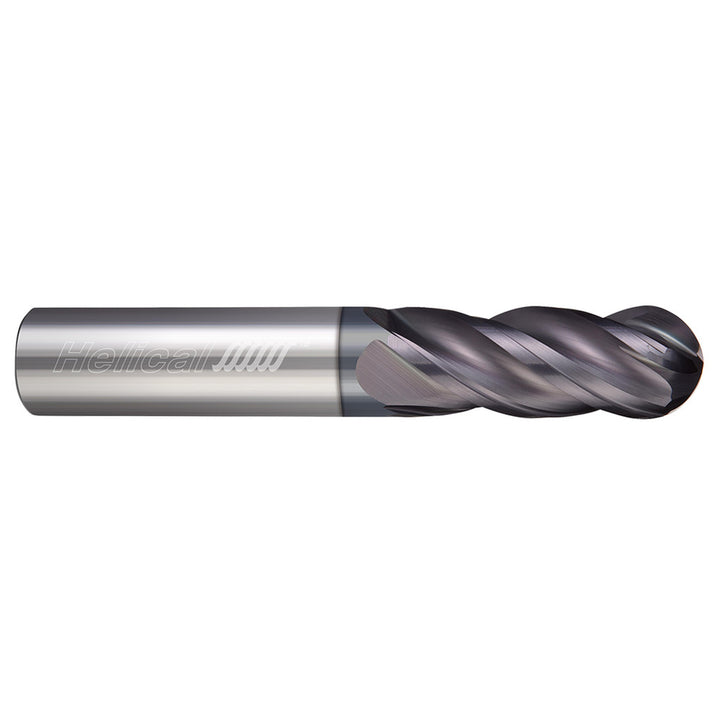

The Helical Solutions 56527 is a 1/2 4-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/4 length of cut, 3 overall length. Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.

Specifications

ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog number56527
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.2500
Number of flutes4
Overall length in3
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in1-1/4
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
