3/8in" 3-Flute Solid Carbide Corner Radius End Mill, Zplus - Helical Solutions 59097

Helical Solutions

3/8in" 3-Flute Solid Carbide Corner Radius End Mill, Zplus - Helical Solutions 59097

MFR# 59097Series H35AL-3

$54.65List $63.80 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingZplus

Description

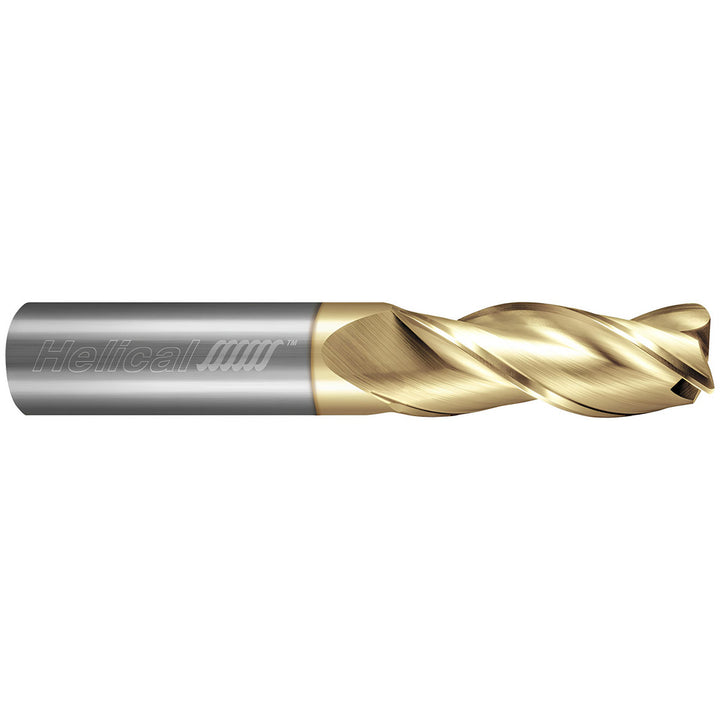

The Helical Solutions 59097 is a 3/8in 3-flute Solid Carbide corner radius end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 1in length of cut, 3in overall length. Series H35AL-3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZplus
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Helix styleMedium
Length of cut in1in
Length typeRegular
Material applicationAluminum; Non-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter toleranceh6
Number of flutes3
Overall length in3in
Overall length tolerance-0.0620/0.0620 in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; High Temperature Alloy; Hard Material
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0003
Variable helixNo
Variable indexNo
