Helical Solutions

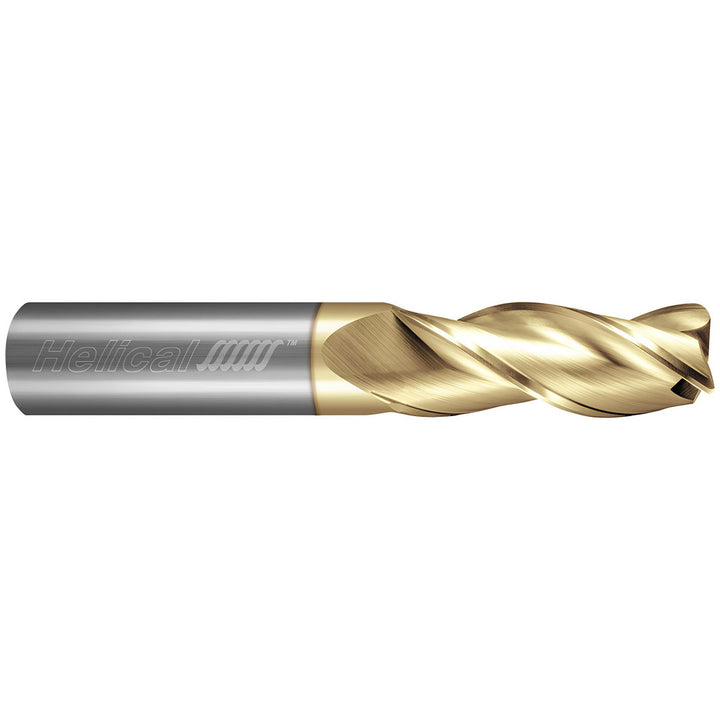

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Helical Solutions 59118

MFR# 59118Series H35AL-3

$72.74List $84.92 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Helical Solutions 59118 is a 1/2 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 2-1/2 overall length. Series H35AL-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0600

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Helix styleMedium

Length of cut in5/8

Length typeStub

Material applicationAluminum; Non-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter toleranceh6

Number of flutes3

Overall length in2-1/2

Overall length tolerance-0.0620/0.0620 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; High Temperature Alloy; Hard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0003

Variable helixNo

Variable indexNo
