Helical Solutions

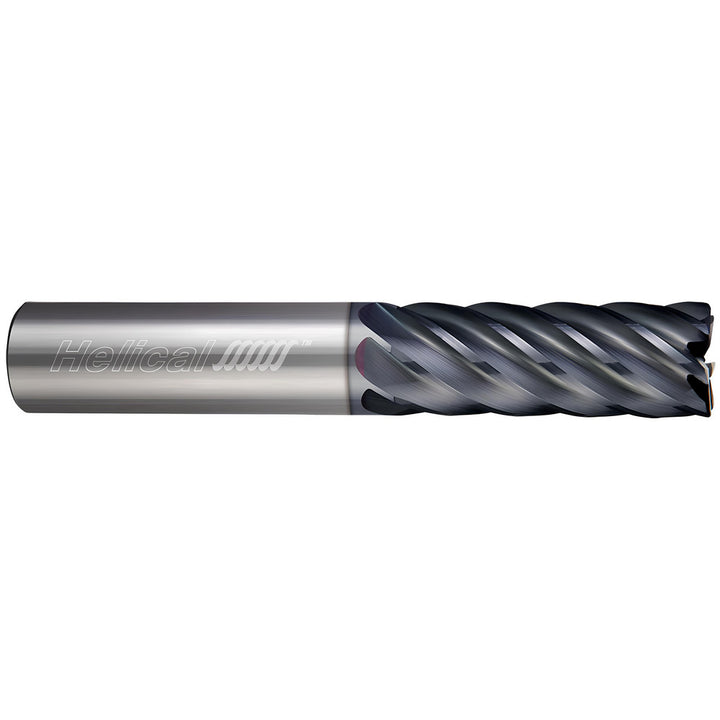

1" 6-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 59388
MFR# 59388Series HEV-6
$887.92List $1,036.64
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes6
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 59388 is a 1 6-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 3-1/4 length of cut, 6 overall length. Series HEV-6.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Corner radius0.0600
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in3-1/4
Length typeLong
Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron; Titanium
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes6
Overall length in6
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
