Helical Solutions

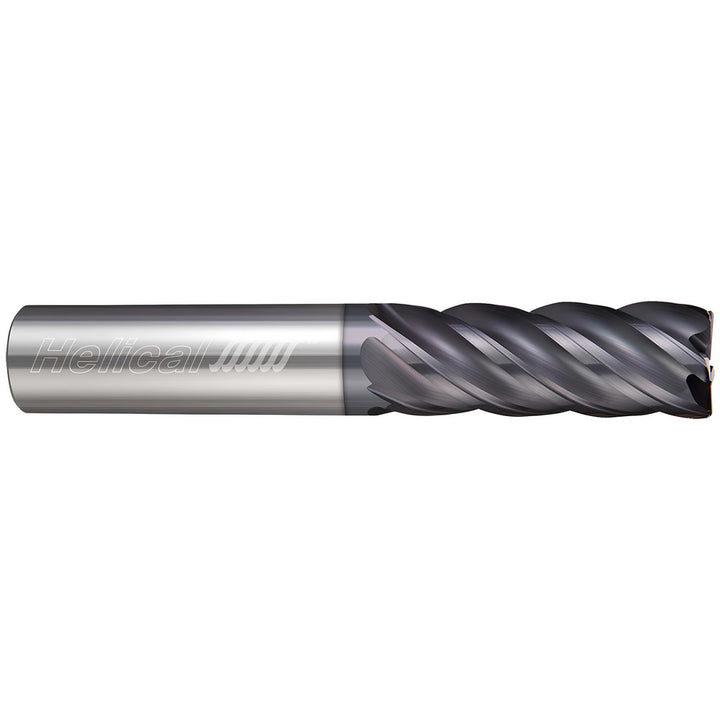

1/2" 7-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 59427

MFR# 59427Series HEV-C-7

$143.02List $166.98 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes7

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 59427 is a 1/2 7-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series HEV-C-7.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAPLUS

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in1

Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron; Titanium

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes7

Overall length in3

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
