Helical Solutions

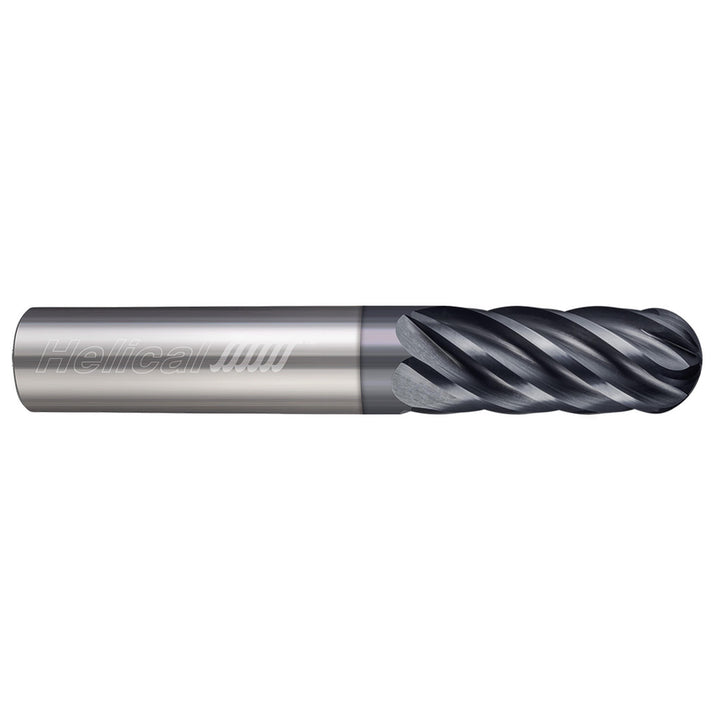

3/8" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 59442
MFR# 59442Series HEV-6
$84.86List $97.35
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes6
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 59442 is a 3/8 6-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1/2 length of cut, 2 overall length. Series HEV-6.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coating finish familyAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1/2
Length typeStub
Manufacturers catalog number59442
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.1875
Number of flutes6
Overall length in2
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length in1/2
Secondary workpiece materialSteel
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
