Helical Solutions

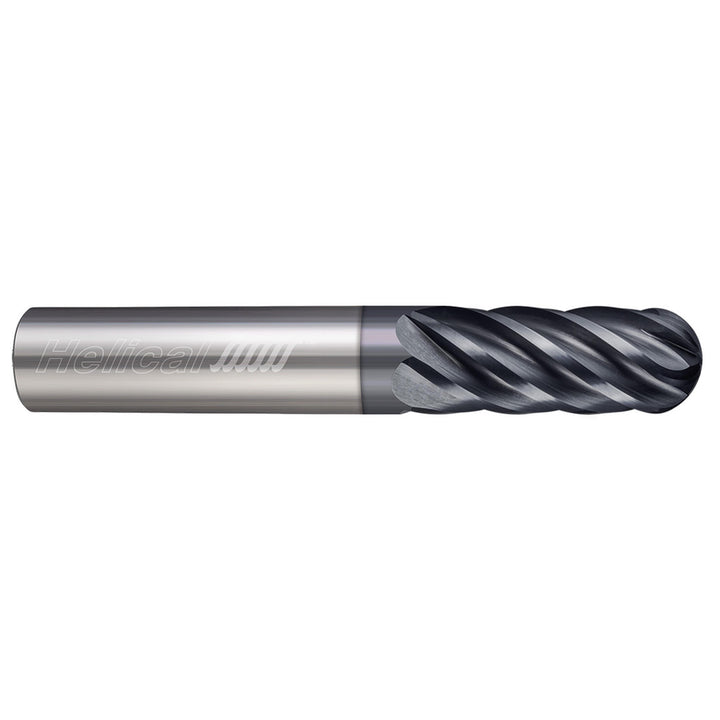

1/2in" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 59448
MFR# 59448Series 6 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, Cast Iron, & Titanium
$141.70List $165.44
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes6
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 59448 is a 1/2in 6-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for superalloys & titanium. 1-1/4in length of cut, 3in overall length. Series 6 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, Cast Iron, & Titanium.
Specifications
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in1-1/4in
Length typeStandard
Manufacturers catalog number59448
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.2500
Number of flutes6
Overall length in3in
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSuperalloys & Titanium
Reach length in1-1/4
Secondary workpiece materialSteel
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
