Helical Solutions

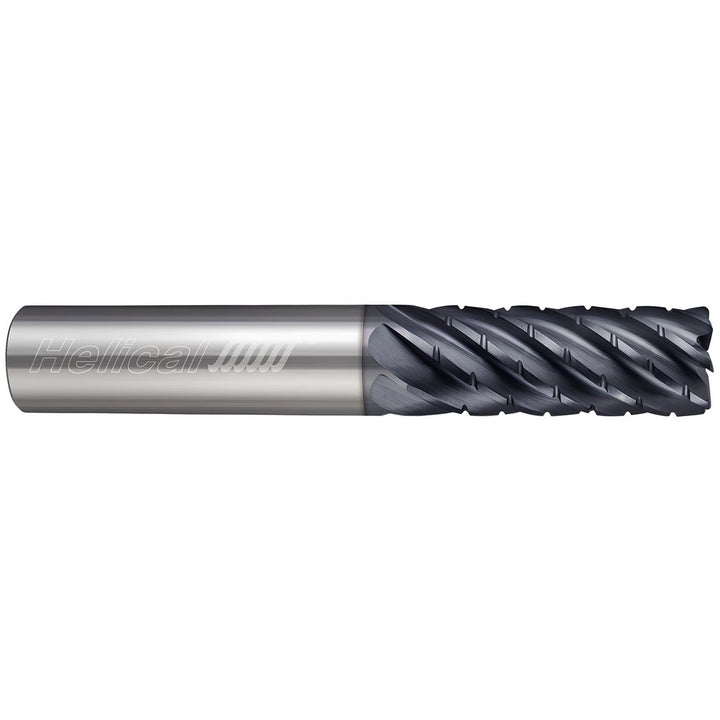

3/8" 6-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 59919

MFR# 59919Series HEV-6

$88.66List $103.51 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 59919 is a 3/8 6-flute Solid Carbide corner radius end mill with a Tplus finish for longer tool life. Suited for stainless steel, high temperature alloy, hard material. 1 length of cut, 3 overall length. Series HEV-6.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTplus

Coolant throughNo

Corner radius0.0200

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in1

Length typeRegular

Material applicationStainless Steel; High-Temperature Alloy; Hardened Steel

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in3

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialStainless Steel; High Temperature Alloy; Hard Material

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
