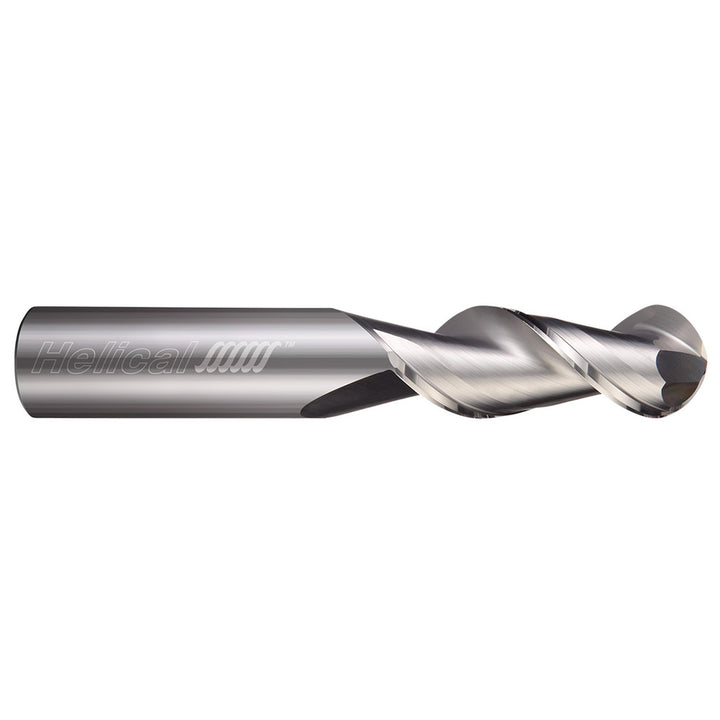

3/16in" 2-Flute Solid Carbide Ball End Mill - Helical Solutions 81319

Helical Solutions

3/16in" 2-Flute Solid Carbide Ball End Mill - Helical Solutions 81319

MFR# 81319Series 2 Flute, Ball - 45 Helix, End Mills for Aluminum Alloys & Non-Ferrous Materials

$34.94List $37.84 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Helical Solutions 81319 is a 3/16in 2-flute Solid Carbide (Carbide) ball end mill. Suited for non-ferrous metal. 3/4in length of cut, 2-1/2in overall length. Series 2 Flute, Ball - 45 Helix, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number81319
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter toleranceh6
Nose radius0.0938
Number of flutes2
Overall length in2-1/2in
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialNon-Ferrous Metal
Reach length in3/4
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexNo
