Helical Solutions

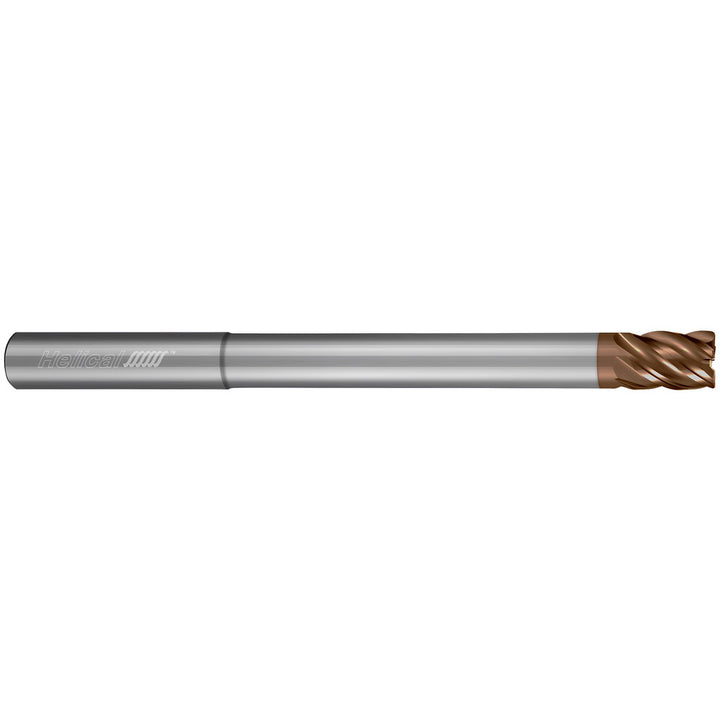

1/2" 6-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 82231

MFR# 82231Series HEV-C-6

$99.72List $108.02 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 82231 is a 1/2 6-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 5/8 length of cut, 2-1/2 overall length. Series HEV-C-6.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAPLUS

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in5/8

Length typeStub

Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron; Titanium

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in2-1/2

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialStainless Steel; Non-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
