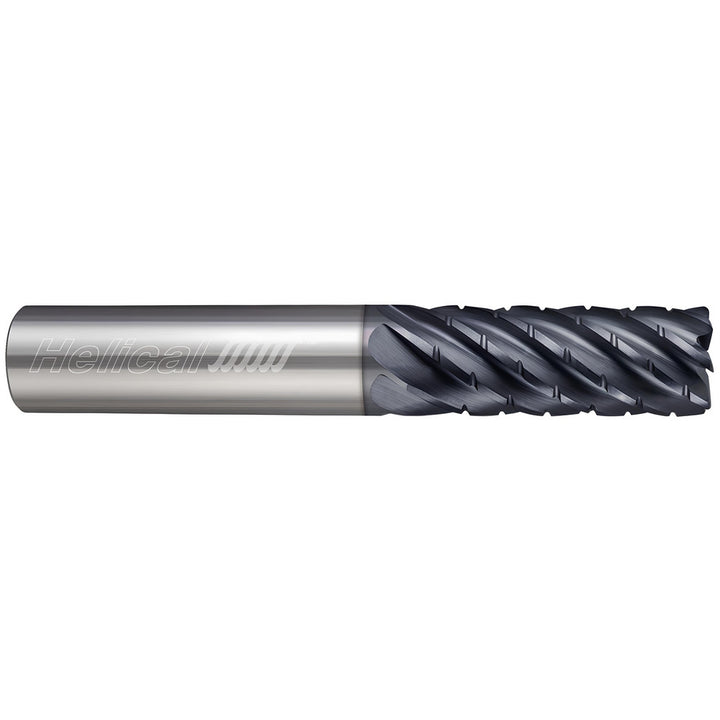

3/16" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 82501

Helical Solutions

3/16" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 82501

MFR# 82501Series HSVR-C-4

$45.36List $52.03 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 82501 is a 3/16 4-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 7/16 length of cut, 2 overall length. Series HSVR-C-4.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishAPLUS
Coolant throughNo
Corner radius0.0100
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in7/16
Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron
Material removal typeRoughing
Mill diameter in3/16
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in2
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
