Helical Solutions

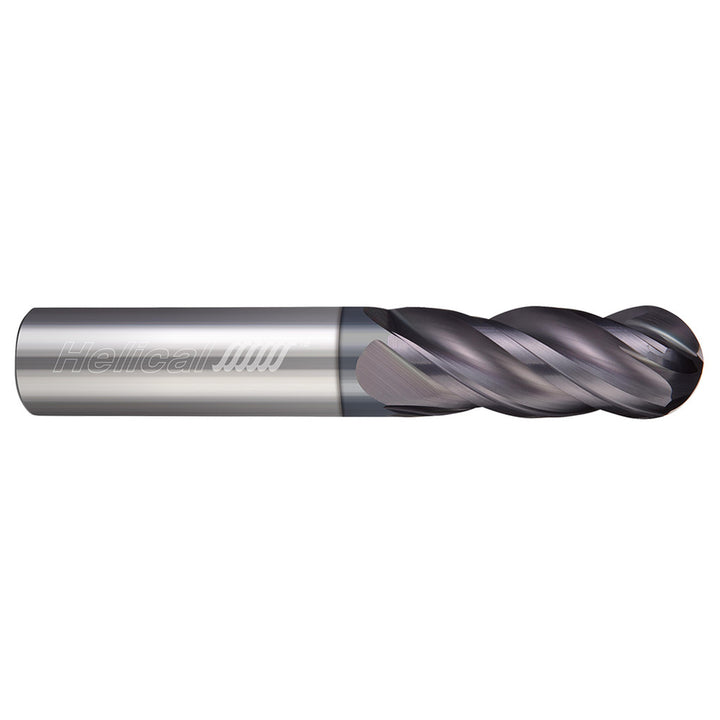

1/8" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 82510
MFR# 82510Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron
$36.65List $42.79
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 82510 is a 1/8 4-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/4 length of cut, 2-1/2 overall length. Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.
Specifications
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in3/4
Length typeLong
Manufacturers catalog number82510
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0625
Number of flutes4
Overall length in2-1/2
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in3/4
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
