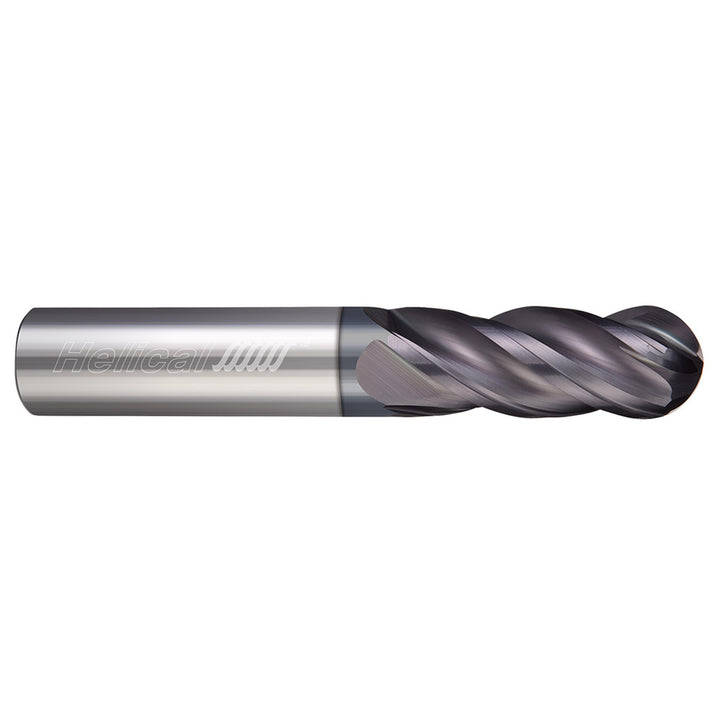

3/16" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 82511

Helical Solutions

3/16" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 82511

MFR# 82511Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron

$42.19List $48.40 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 82511 is a 3/16 4-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 7/16 length of cut, 2 overall length. Series 4 Flute, Ball - Variable Pitch (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.

Specifications

ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in7/16
Length typeStandard
Manufacturers catalog number82511
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/16
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0938
Number of flutes4
Overall length in2
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length0.4370
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
