Helical Solutions

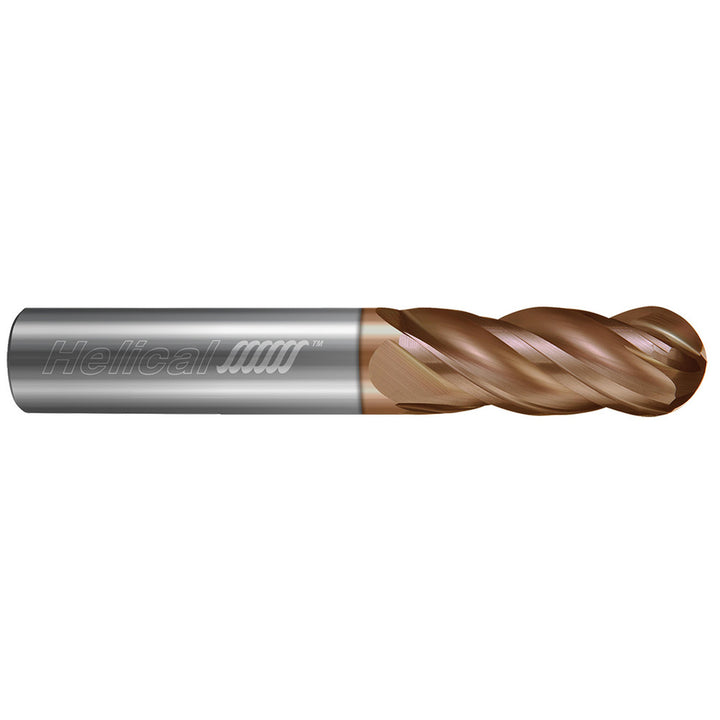

3/16in" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83279

MFR# 83279Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys

$50.31List $58.74 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16in

Flutes4

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 83279 is a 3/16in 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 5/16 length of cut, 2 overall length. Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys.

Specifications

ChipbreakerNo

Coating finishTplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Length of cut in5/16

Length typeStandard

Manufacturers catalog number83279

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/16in

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.0938

Number of flutes4

Overall length in2

Overall length tolerance+0.0620/-0.06250 in

Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Reach length0.3120

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
