Helical Solutions

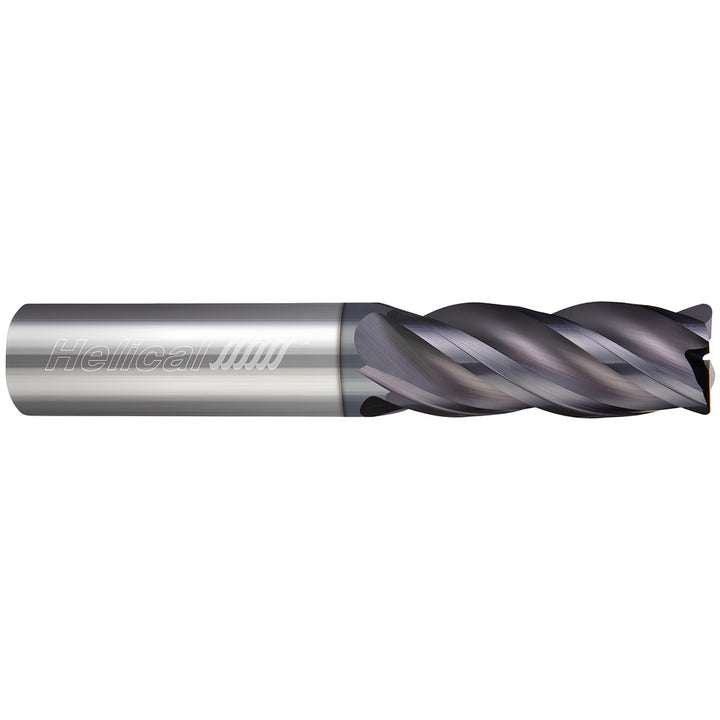

3/8" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 82546

MFR# 82546Series HEV-5

$75.09List $87.67 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 82546 is a 3/8 5-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 3/4 length of cut, 2-1/2 overall length. Series HEV-5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Corner radius0.0100

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in3/4

Material applicationSteel; Cast Iron

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in2-1/2

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSteel; Cast Iron

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
