Helical Solutions

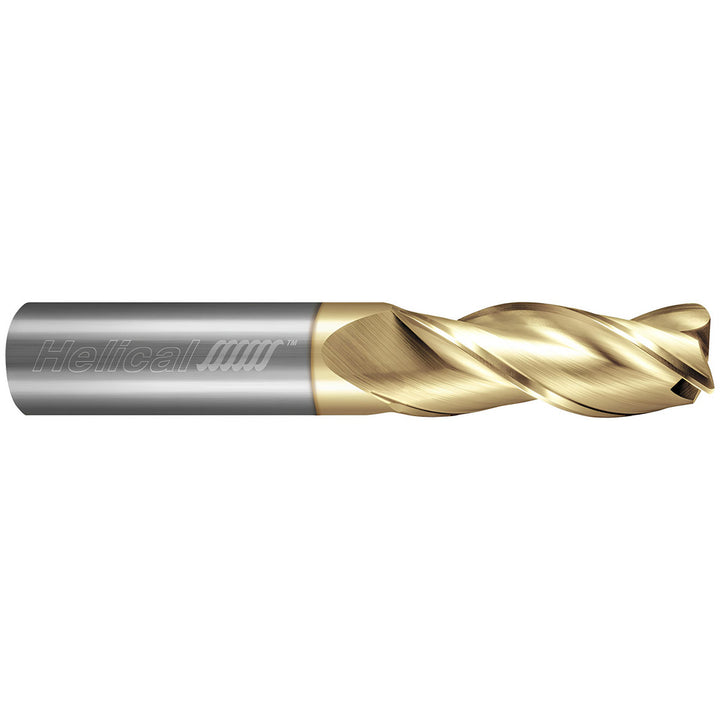

3/4" 3-Flute Solid Carbide Corner Radius End Mill, Zplus - Helical Solutions 82800

MFR# 82800Series H35AL-3

$610.73List $713.02 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingZplus

Description

The Helical Solutions 82800 is a 3/4 3-flute Solid Carbide corner radius end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 4 length of cut, 6-1/2 overall length. Series H35AL-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZplus

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Helix styleMedium

Length of cut in4

Length typeExtra Long

Material applicationAluminum; Non-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter toleranceh6

Number of flutes3

Overall length in6-1/2

Overall length tolerance-0.0620/0.0620 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; High Temperature Alloy; Hard Material

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0003

Variable helixNo

Variable indexNo
