Helical Solutions

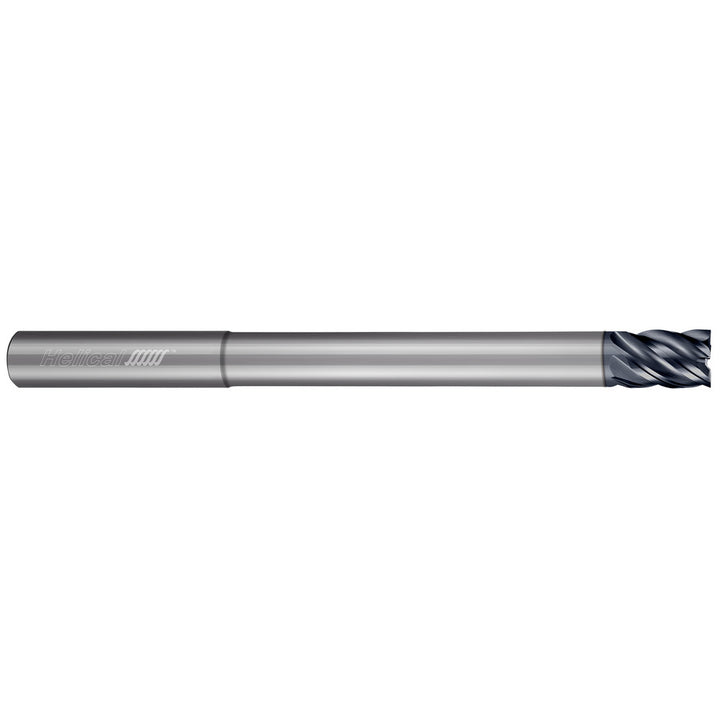

1/4" 5-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 83017
MFR# 83017Series End Mills for Steels - 5 Flute - Square - Variable Pitch - Reduced Neck
$74.31List $85.25
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 83017 is a 1/4 5-flute Solid Carbide square end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/4 length of cut, 4 overall length. Series End Mills for Steels - 5 Flute - Square - Variable Pitch - Reduced Neck.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coating finish familyAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Length of cut in3/4
Material gradeSolid Carbide
Mill diameter in1/4
Number of flutes5
Overall length in4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in2-1/8
Shank diameter in1/4
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
