Helical Solutions

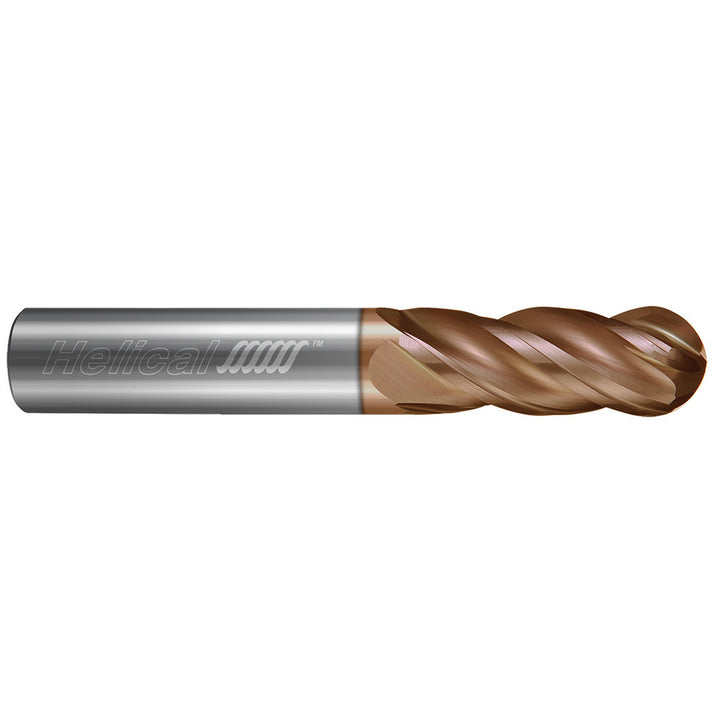

1/8" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83275
MFR# 83275Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys
$42.48List $48.73
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingTplus
Description
The Helical Solutions 83275 is a 1/8 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 1/4 length of cut, 1-1/2 overall length. Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys.
Specifications
ChipbreakerNo
Coating finishTplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1/4
Length typeStandard
Manufacturers catalog number83275
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0625
Number of flutes4
Overall length in1-1/2
Overall length tolerance+0.0620/-0.06250 in
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Reach length in1/4
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
