3/16" 4-Flute Solid Carbide Ball End Mill - SGS 31422

SGS

3/16" 4-Flute Solid Carbide Ball End Mill - SGS 31422

MFR# 31422Series 14B

$32.77List $42.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

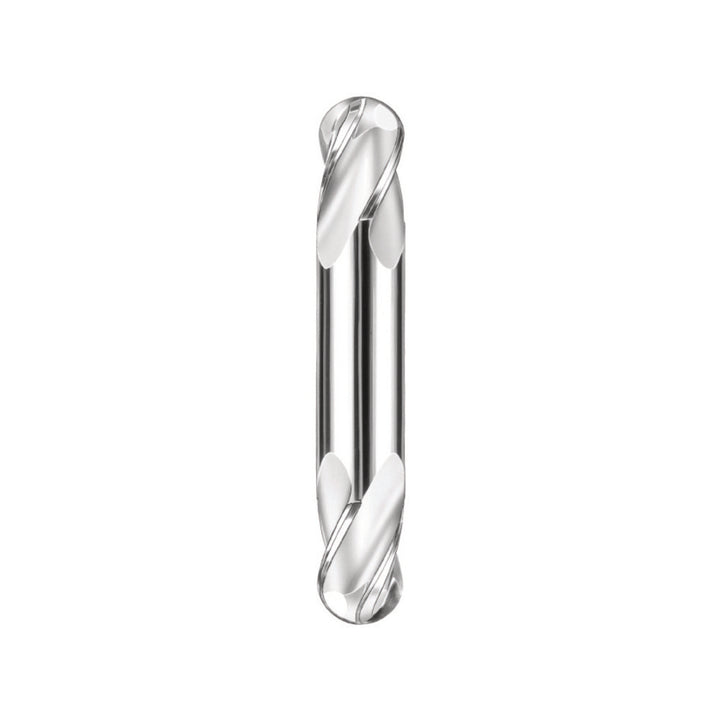

The SGS 31422 is a 3/16 4-flute Solid Carbide (Micrograin) ball end mill. 3/8 length of cut, 2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endDouble
Variable helixNo
Variable indexNo
