Helical Solutions

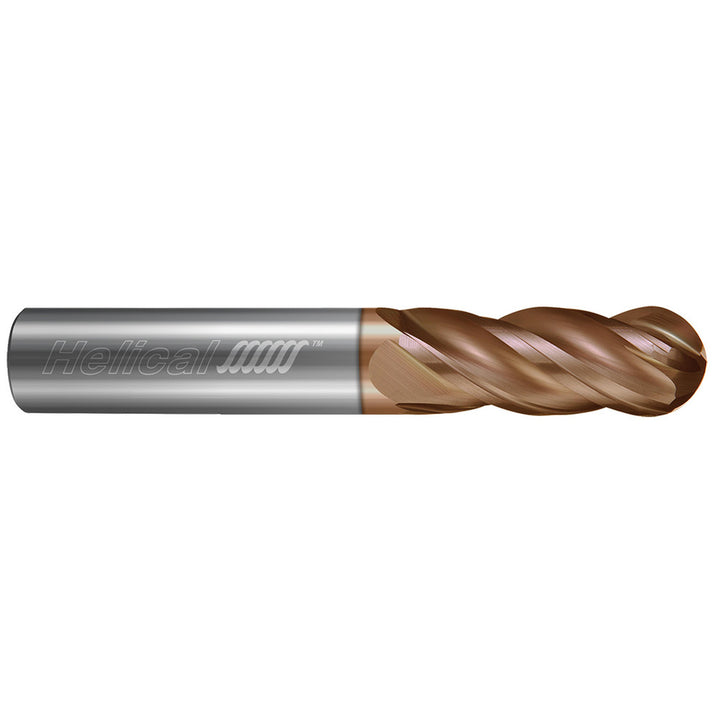

1/2" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83299

MFR# 83299Series HSV-4

$133.25List $144.33 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 83299 is a 1/2 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, high-temp alloy, hardened materials. 2 length of cut, 4 overall length. Series HSV-4.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTplus

Coating finish familyTplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in2

Length typeStandard

Manufacturers catalog number83299

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes4

Overall length in4

Overall length tolerance+0.0620/-0.06250 in

Primary workpiece materialStainless Steel; High-Temp Alloy; Hardened Materials

Reach length in2

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
