Helical Solutions

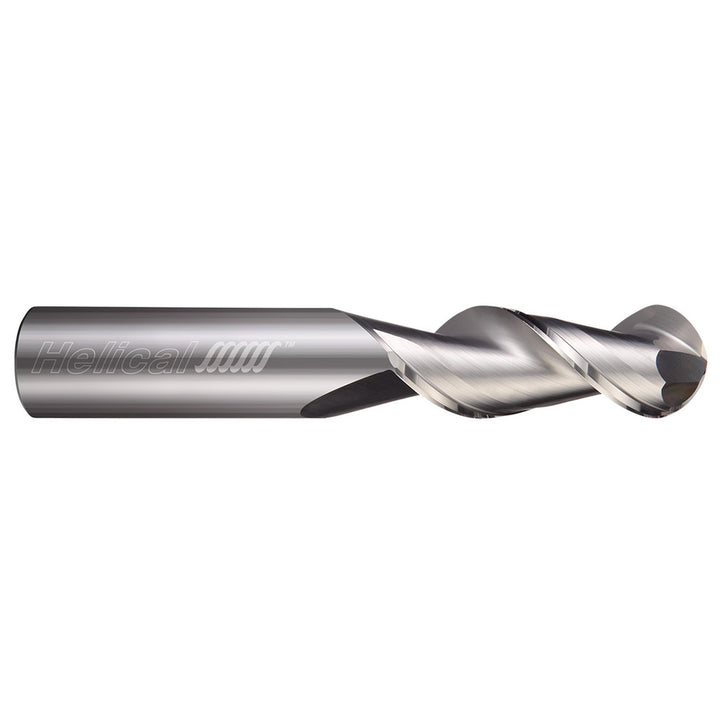

3/8" 2-Flute Solid Carbide Ball End Mill - Helical Solutions 83419

MFR# 83419Series 2 Flute, Ball - 45 Helix, End Mills for Aluminum Alloys & Non-Ferrous Materials

$53.43List $62.37 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Helical Solutions 83419 is a 3/8 2-flute Solid Carbide (Carbide) ball end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 2 Flute, Ball - 45 Helix, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in3/4

Length typeStandard

Manufacturers catalog number83419

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh6

Nose radius0.1875

Number of flutes2

Overall length in2-1/2

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialNon-Ferrous Metal

Reach length in3/4

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0003

Variable helixNo

Variable indexNo
