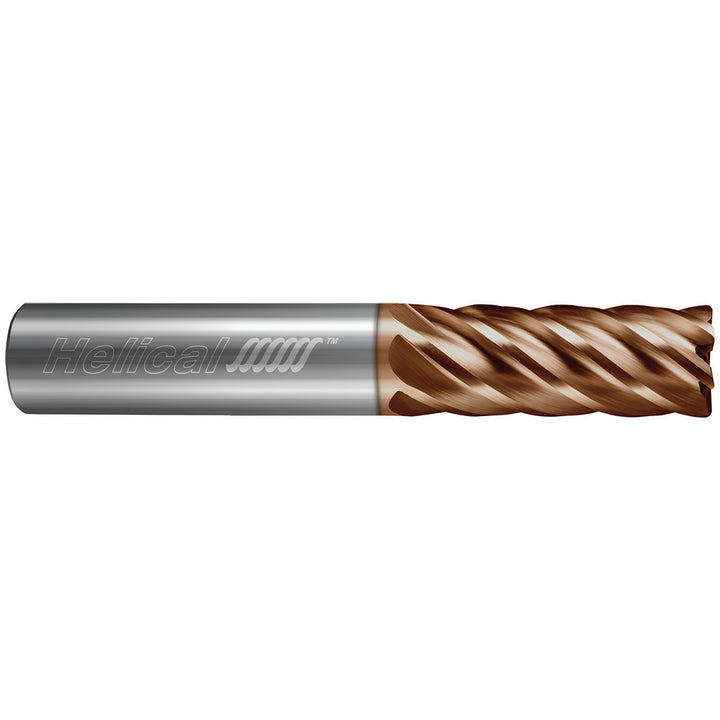

3/8" 6-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 83916

MFR# 83916Series HVTI-6

$69.39List $75.17 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 83916 is a 3/8 6-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for superalloys & titanium. 1-1/2 length of cut, 3-1/2 overall length. Series HVTI-6.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Corner radius0.0600

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in1-1/2

Length typeLong

Material applicationTitanium; Titanium Alloy

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in3-1/2

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialSuperalloys & Titanium

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
