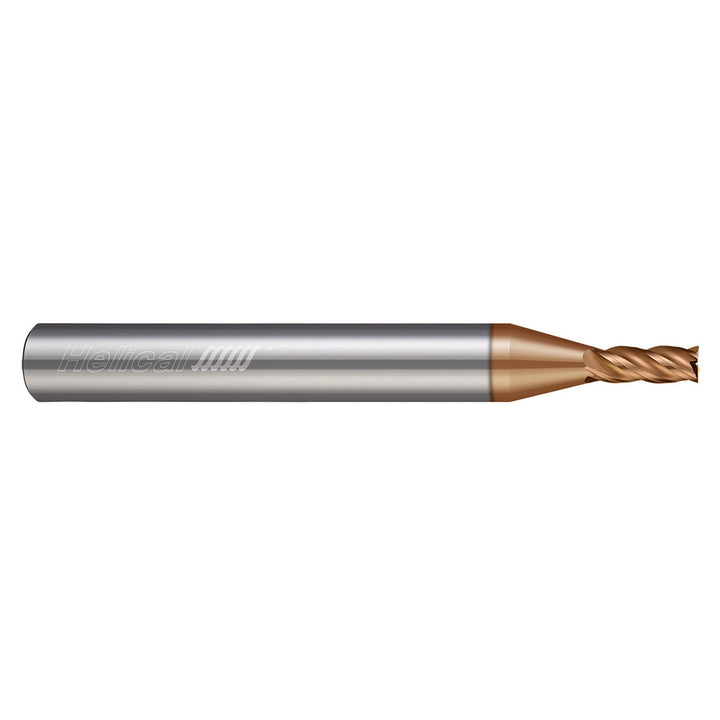

1/16" 4-Flute Solid Carbide Square End Mill, Tplus - Helical Solutions 84045

Helical Solutions

1/16" 4-Flute Solid Carbide Square End Mill, Tplus - Helical Solutions 84045

MFR# 84045Series End Mills for Stainless & High Temp - 4 Flute - Square - Variable Pitch

$55.40List $64.68 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingTplus

Description

The Helical Solutions 84045 is a 1/16 4-flute Solid Carbide square end mill with a Tplus finish for longer tool life. Suited for steel, stainless steel, cast iron. 5/16 length of cut, 2-1/2 overall length. Series End Mills for Stainless & High Temp - 4 Flute - Square - Variable Pitch.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTplus
Coating finish familyTplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35
Length of cut in5/16
Material gradeSolid Carbide
Mill diameter in1/16
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/4
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
