Helical Solutions

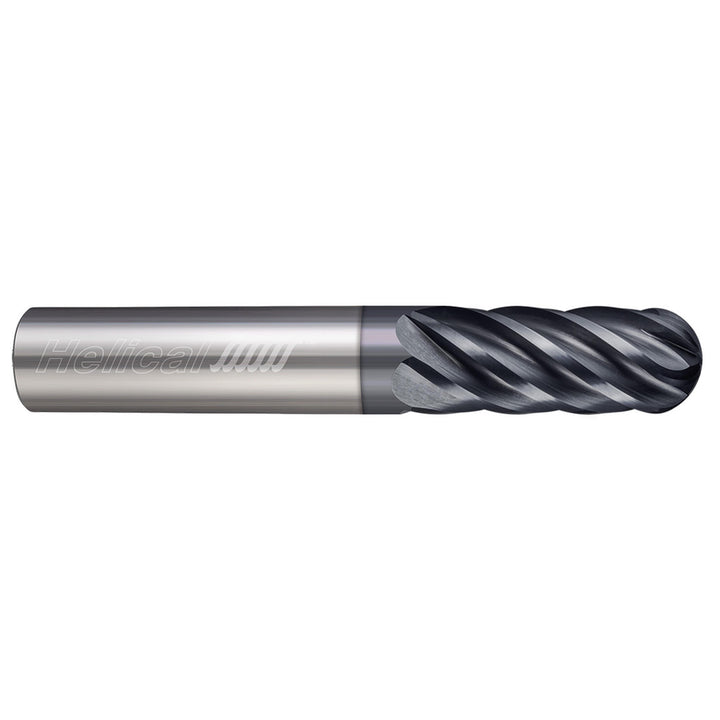

1/8" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 84406

MFR# 84406Series HEV-6

$33.45List $39.05 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes6

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 84406 is a 1/8 6-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1/4 length of cut, 1-1/2 overall length. Series HEV-6.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coating finish familyAPLUS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Length of cut in1/4

Length typeStandard

Manufacturers catalog number84406

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.0625

Number of flutes6

Overall length in1-1/2

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length in1/4

Secondary workpiece materialSteel

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
