Seco

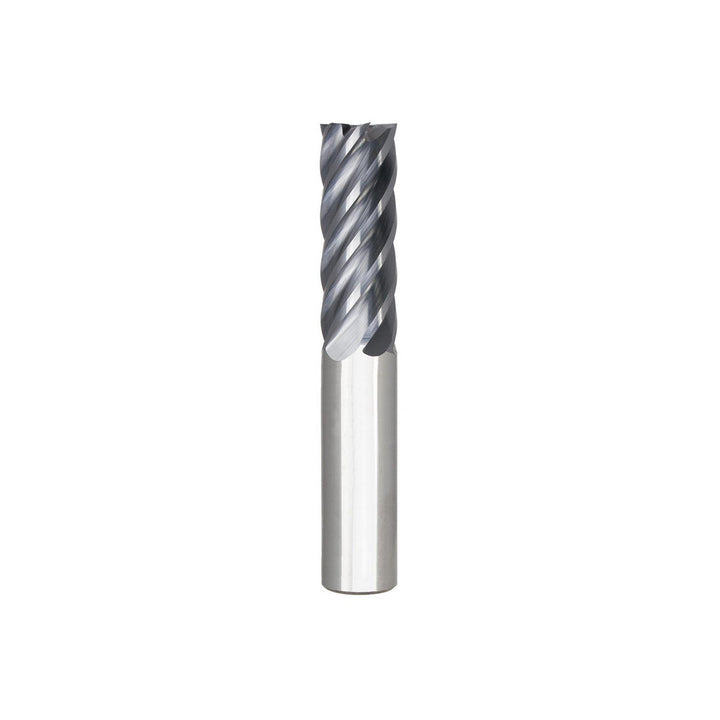

0.1250" 6-Flute Solid Carbide Single End Mill, AlTiN - Seco 03115930

MFR# 03115930Series S638

$68.53List $87.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03115930 is a 0.1250 6-flute Solid Carbide (Micrograin) single end mill with a AlTiN finish for longer tool life. 5/16 length of cut. Series S638.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in5/16

Length typeLong

Material gradeMicrograin

Mill diameter0.1250

Mill diameter frac in1/8

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes6

Overall length tolerance+0.060/-0.060 in

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexNo
