Helical Solutions

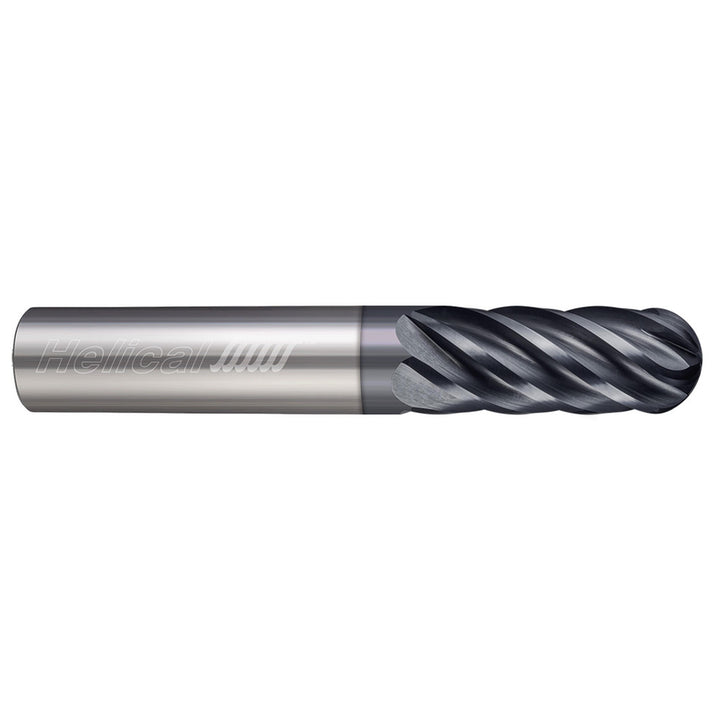

1/2" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 84572

MFR# 84572Series 6 Flute - Ball - Variable Pitch - For High Efficiency Milling, End Mills for Titanium

$129.08List $150.70 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 84572 is a 1/2 6-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for superalloys & titanium. 1 length of cut, 3 overall length. Series 6 Flute - Ball - Variable Pitch - For High Efficiency Milling, End Mills for Titanium.

Specifications

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1

Length typeStandard

Manufacturers catalog number84572

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes6

Overall length in3

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialSuperalloys & Titanium

Reach length in1

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
