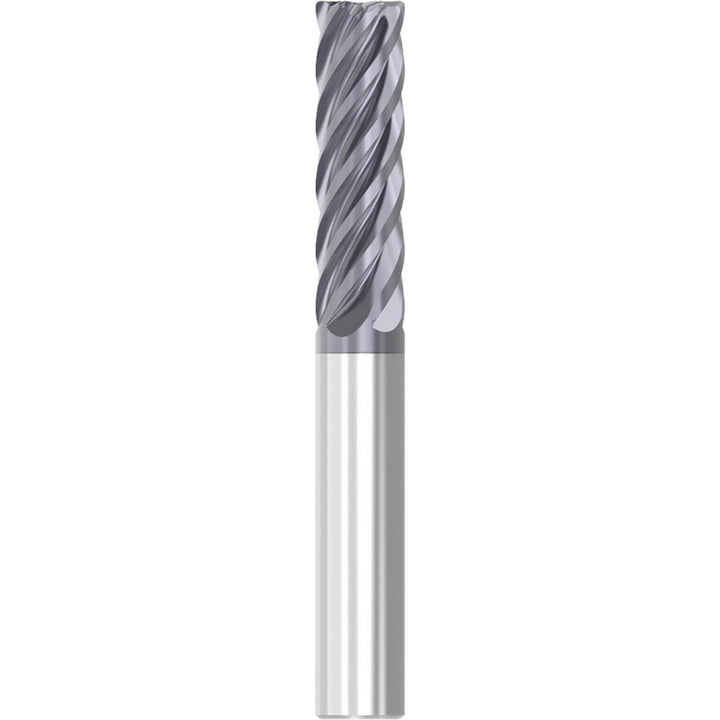

0.5000" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 10072647

Seco

0.5000" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 10072647

MFR# 10072647Series S638

$130.21List $167.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 10072647 is a 0.5000 6-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. 1 length of cut. Series S638.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle38
Length of cut in1
Length typeStandard
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.0000/+0.0020 in
Number of flutes6
Shank diameter in1/2
Shank typeStraight
Single or double endSingle
Variable helixNo
Variable indexYes
