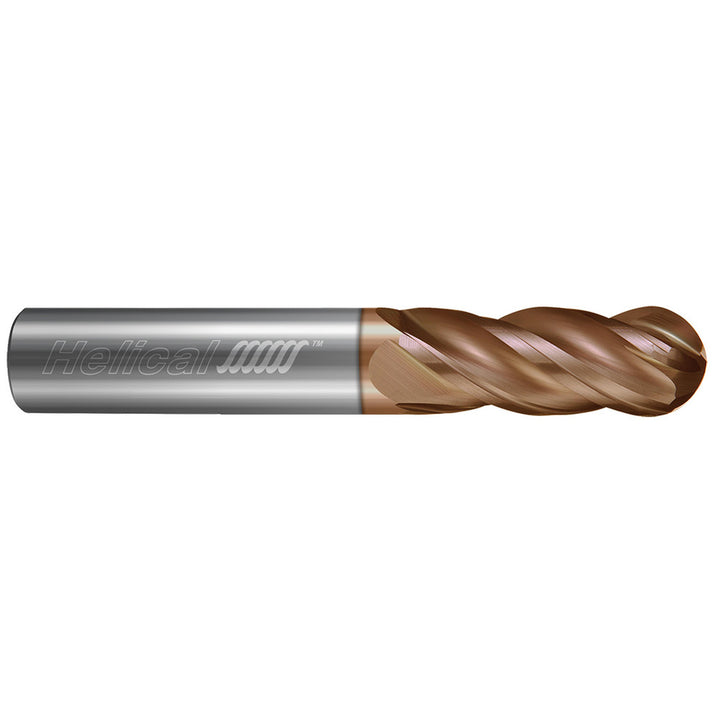

3/16in" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 84756

Helical Solutions

3/16in" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 84756

MFR# 84756Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys

$51.17List $59.73 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingTplus

Description

The Helical Solutions 84756 is a 3/16in 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 7/16 length of cut, 2in overall length. Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys.

Specifications

ChipbreakerNo
Coating finishTplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in7/16
Length typeStandard
Manufacturers catalog number84756
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0938
Number of flutes4
Overall length in2in
Overall length tolerance+0.0620/-0.06250 in
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Reach length0.4370
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
